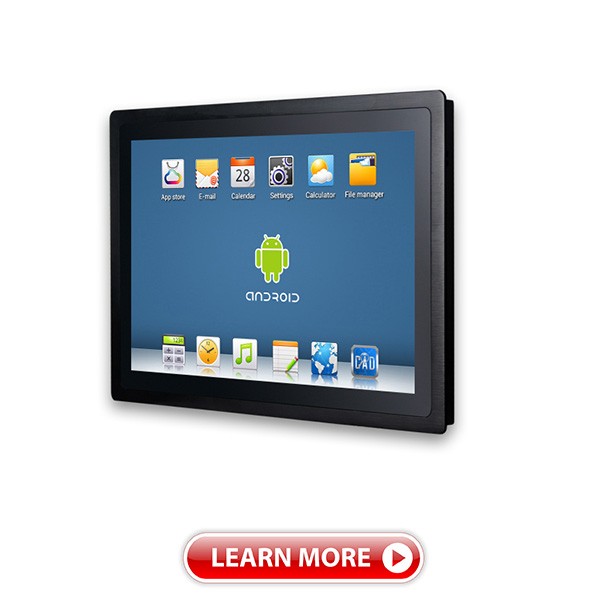

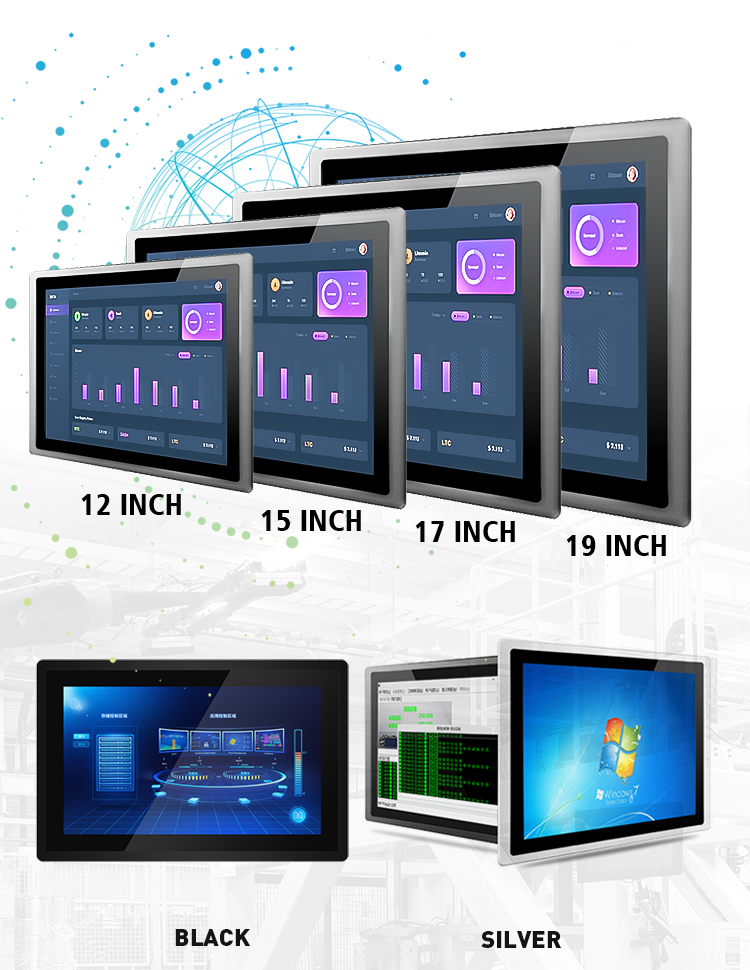

15 inch Industrial PC Panel

Place of Origin: Guangdong, China
Brand Name: KINGONE
Model Number: GQ-GD-15Y
Panel Type: LCD, IPS
Panel Size: 15 inches

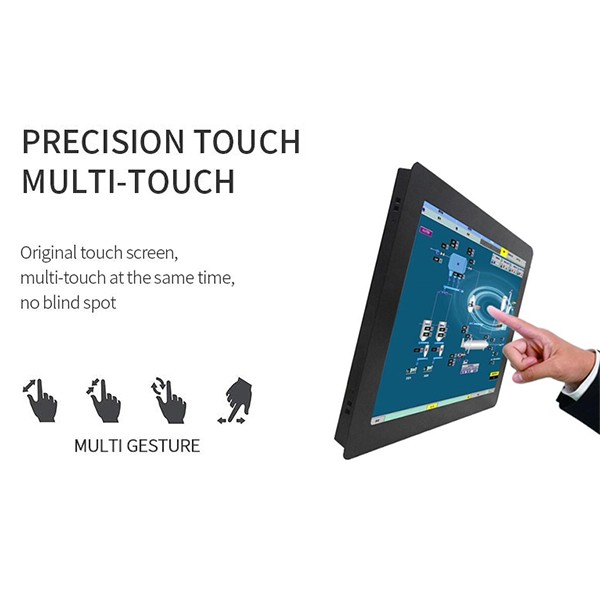

Touch Type: Capacitive touch
Warranty: 1 Year
Certificates: CE FCC ROHS
Surface: 3mm Tempered glass
Installation Way: Desktop, Built-in
Application: industrial machine
Operating system: Android / Windows 10

EMAIL

All-in-one pc embedded HDMI industrial pc touch screen


Computer


CPU

Intel® Celeron 1037 2.0GHz quad core


Memory

2G DDR3, ( Max. 8G)


Hard Drive Capacity

64G SSD


Hard Drive Optional

SSD 32GB,64GB,128GB,160GB


HDD 160GB,320GB,500GB,1TB


Graphics

Integrated Card NVIDIA ION2 and support 1080p HD photo


Audio

Realtek ALC662, High Definition Audio (HD), Line in, Line out


Network

1×Realtek RTL 8111E Gigabit Ethernet controller


Wireless Network

WIFI optional

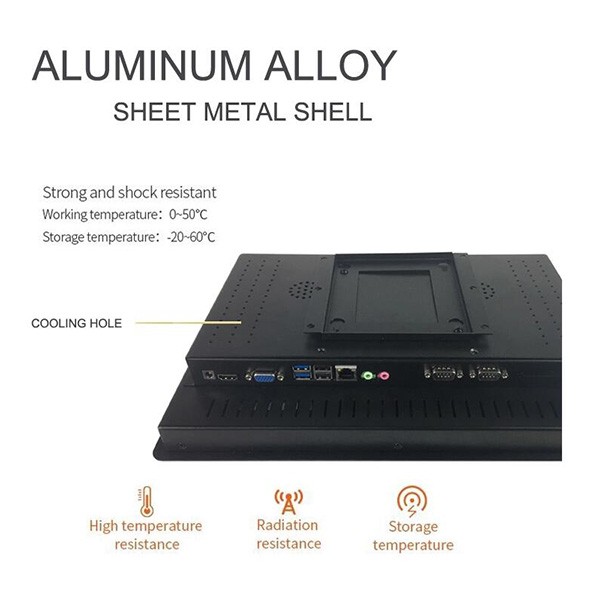

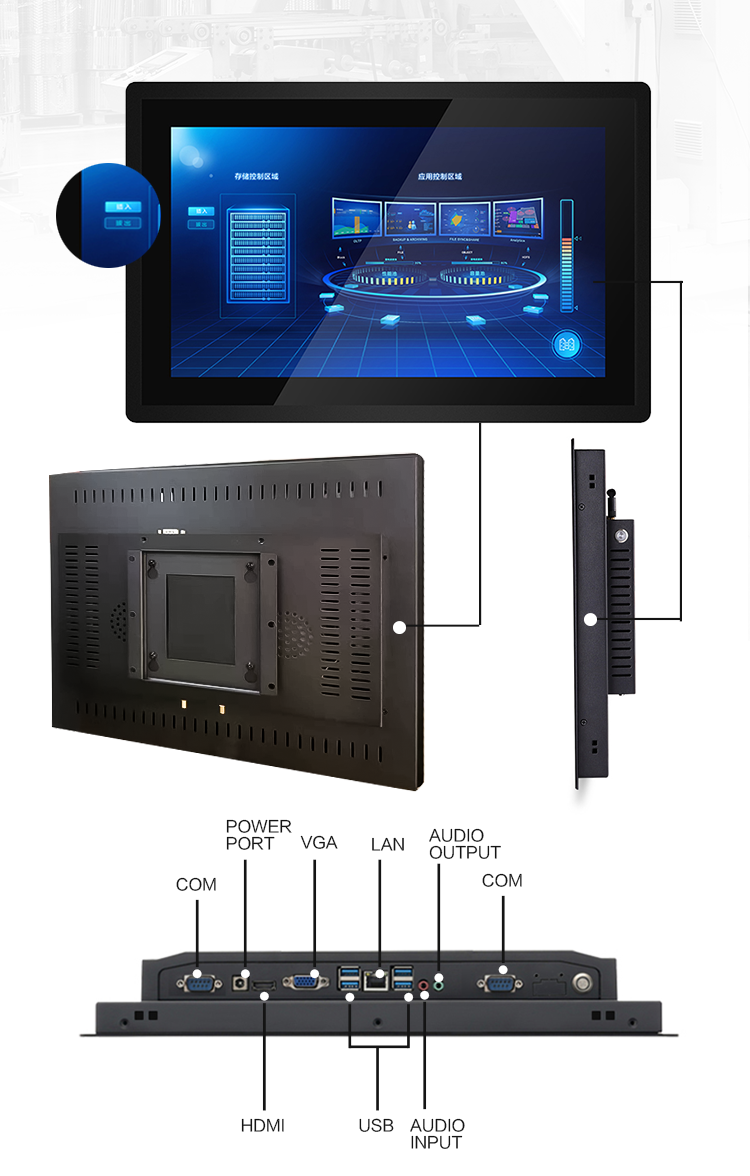

I/O Interface

2×USB2.0,2xUSB3.0,1×Lan(RJ45),2 x COM(RS232/Serial),1×VGA/HDMI/Audio OUT/POWER DC


Opetation System

Preinstall test version Windows 7/8/10,Linux


LCD panel


Panel size

10.4 inch


Resolution

1024*600


Brightness (cd/m²)

500


Response time

15ms


Contrast ratio

500:1


View angle

80°/80°/70°/70° (R/L/U/D)


Touch panel


Touchscreen Type

4 wires resistive touch


Touch response time

<15ms


Power Supply


External Power Supply

AC 100 - 240V


Working voltage

DC 12V


Power consumption

≤18W


Operating Environment


Temperature range

operating: -25 to 75°C, storage :-30 to 80°C


Relative humidity

5%~95% @ 40° C, non-condensing


Vibration

5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis


Packing Details


Net weight

3.5kg


Gross weight

4kg


Accessories

Power adapter, USB touch CD drive, touch pen, wall mounting bracket


Other


Mounting (options)

1) provide wall brackets for wall-mounting, VESA 100×100mm


2) provide stable metal holder to support the monitor


Certification

CE, FCC


Warranty

1 year warranty


Industrial PC panel is good for industrial machine, with fast running speed and can be customized for

various configurations. Welcome to consult!


 KINGONE advertising display screen also ideal for Display advertising ,exhibitions and other

media related displays and performances for business persons The strength of the company,

often participate in the international education exhibition, customer coverage of the world!

Welcome to our factory!

<<<Click here for more information <<<<

KINGONE were founded in 2010 as a R&D and sales company ,is well established and well known

for our high quality standards and reliable services .advertising display screen passed ISO9001 /

CCC/CE?ROHS/FCC?CNAS so on test .Don't worry about the quality, especially we have a special

after sales service department to answer your questions

1)Are you a factory or trading company ? What is the MOQ of advertising display screen?

A:Yes, we are factory direct sales and have some items in stock , you can order 1pcs for test.

2) What is the delivery time? Where do you ship of advertising display screen?

A:Generally speaking , the goods can be delivered within 5-7 days for small orders, and the

production time about 15 days for more than 10pcs. In addition, our factory is located in

Wangniudun, Dongguan. If you have forwarder in Shenzhen or Guangzhou, we can help shipment

to your fowarder .

3) Could you provide OEM&ODM service of advertising display screen?

A:of course , including software, packaging, product logo, etc., consult customer service for more

details.

4) What is the warranty period of the advertising display screen?

A:Normally it is 1 year, we have a professional after-sales service team, specific details can consult

customer service.

5)How do you guarantee the quality of your advertising display screen?

A:Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products

pass strict QC inspection in the production process. In particular, export products need to complete

72-hour aging test to ensure no problems before shipment.

6)How do you arrange transportation of advertising display screen?

A:If small sample orders suggest express delivery (7-10 days) or air freight (10-15 days), if bulk

production advise by sea more favorable , please consult customer service for more details !
