Interactive Flat Panel Screen

Place of Origin: Guangdong, China
Brand Name: KINGONE
Model Number: GQ-ZH-65H
Aspect Ratio: 16:9
Panel Type: LCD, IPS
Panel Size: 65 inches
Resolution: 1920x1080/3840x2160
Writing Method: pen/finger touch
Warranty: 1 Year
Certificates: CE FCC ROHS
Surface: 4mm Tempered glass
Installation Way: Wall mounted and Floor stand
Application: School Teaching
Operating system: Android+win7/10 Optional

65 inch touch screen whiteboard Parameters:

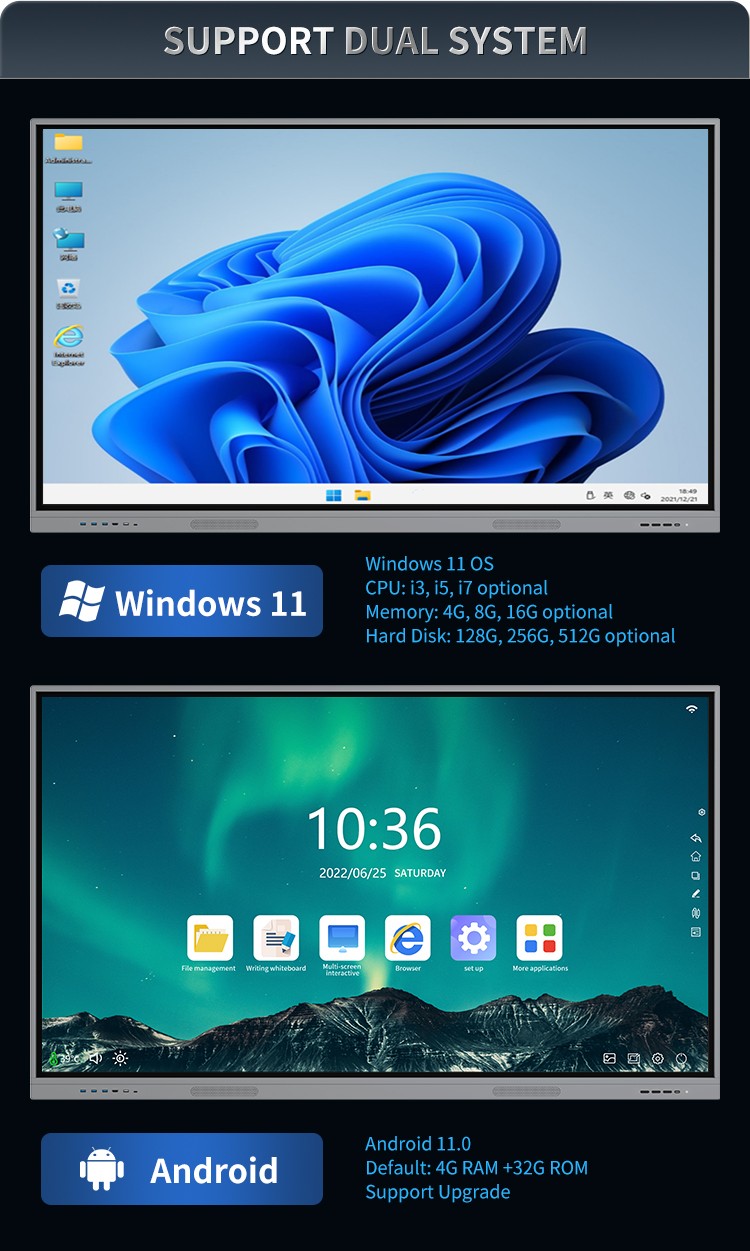

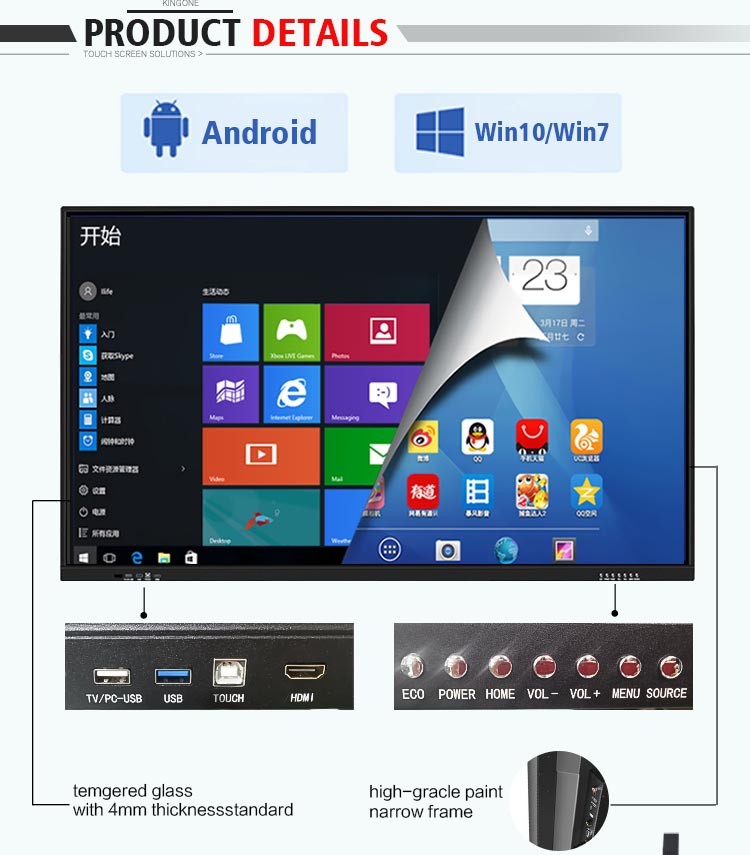

Dual System
Windows 10 OS	Intel core i3/i5/i7 option, Memory 4G/8G/16G option Hard Disk: 128G/256G/512G/1T option
Android OS	Quad core, 4G RAM, 32G ROM, Android 11.0 version
LCD Panel

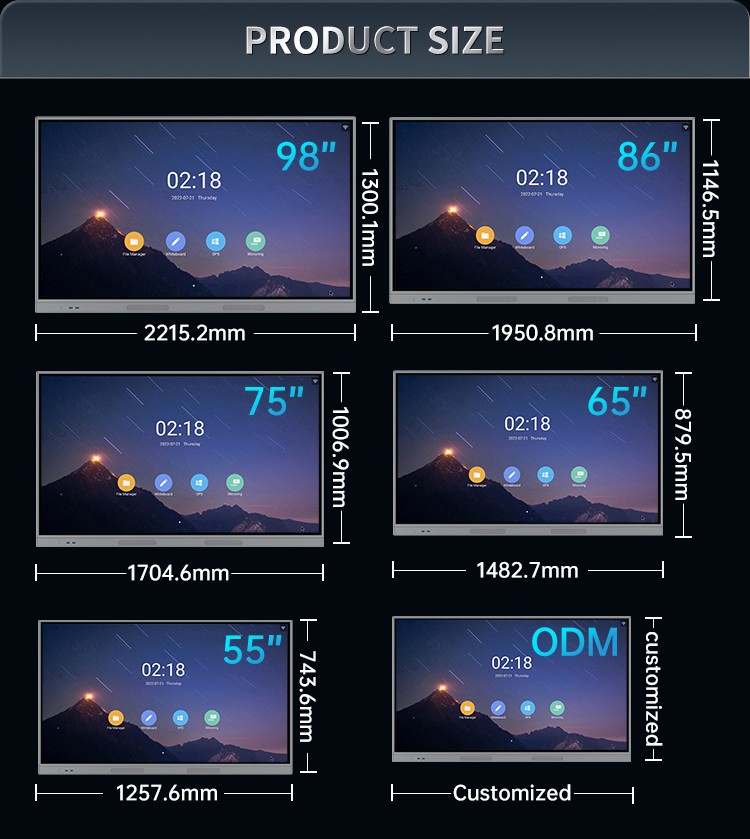

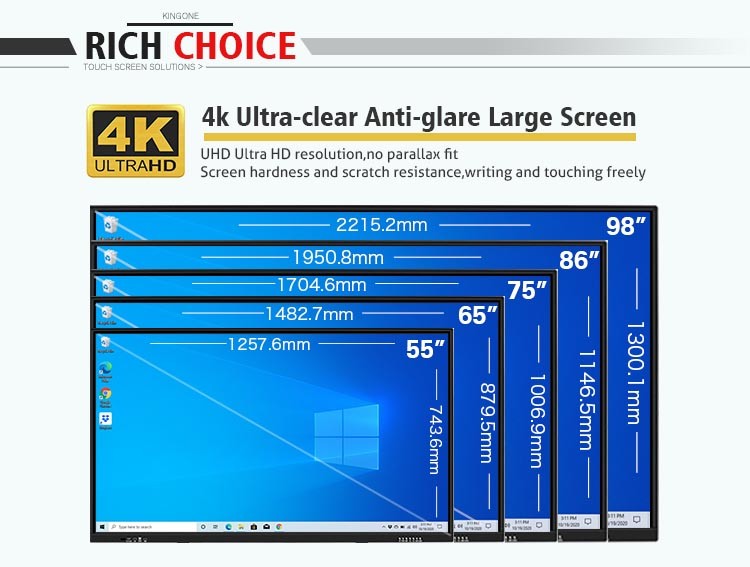

Size	55 inch/ 65 inch / 75 inch / 85 inch / 98 inch Available
Panel Brand	LG、BOE、AU (gauge A screen)
type	TFT-LCD S-PVA
Resolution	3840 × 2160 (UHD) @60hz, 4K UHD screen
Brightness	450cd/m²
Ratio contrast	2000:1
Visual Angle (horizontal/vertical)	178°/178°
Response time	8ms
Visual area(mm)	1649.7(W)×928(H) mm
Color gamut (NTSC)	72%
Backlight	WLED
display scale	16:9
Response time	＜8ms
Life	>60000H
Infrared touch characteristic
Touch the specifications	Infrared touch frame
glass	4mm tempered glass
Glass transmittance	> 88% (higher transmittance depends on glass surface treatment technology such as AR/AG)
Object induction number (IR)	Touch at 20
Number of infrared induction lines (W D)	32767 × 32767
Positional accuracy	More than 90% of the touch area is 2mm
The interface definition	USB 2.0(Full speed)
Touch the strength	Zero pressure touch
The light resistance	It has light resistance
Induction life	6 million times
The response time	＜8ms
The power supply mode	Full duplex usb-powered DC +5V up to 500mA
Switching power supply
Power consumption (typical value)	AC100-240V~(+/-10%),50/60Hz
Standby power consumption	270W
The power interface	1W
Switching power supply	European standard 220V two - phase three - wire system
Mechanical specification parameters
The net weight	52kg
Gross weight	63kg
Bare machine outline size (W x D x H)	1715.8×1024.1×96.8mm
Package size (W x D x H)	1813×1126×190mm
Shell material (face frame/back shell)	Plastic/Sheet metal
Shell color (face frame/back shell)	black
To protect the glass	4mm toughened glass/level 7 earthquake resistant

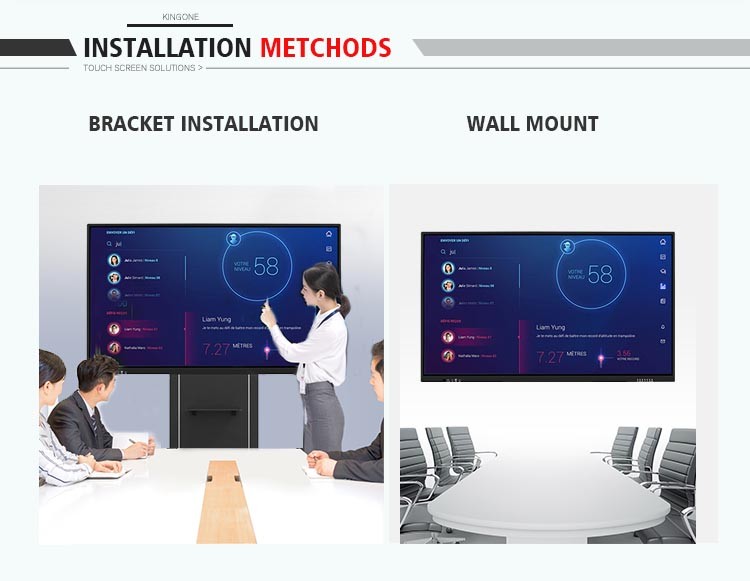

Type of installation	Supports/wall hangers
The cooling way	Temperature-controlled fan dissipates heat
The environment
Working temperature	0℃~50℃
Working humidity	20%~80%(No condensation)
Storage temperature	-20℃~60℃
Store humidity	10%~90%(No condensation)
Display mode	S-ips, often black display, transmission
Maximum service time (hours/day)	24 hours
Features
The speaker	2×8Ω/5W(built in)
Support for input mode	Stylus writes keyboard

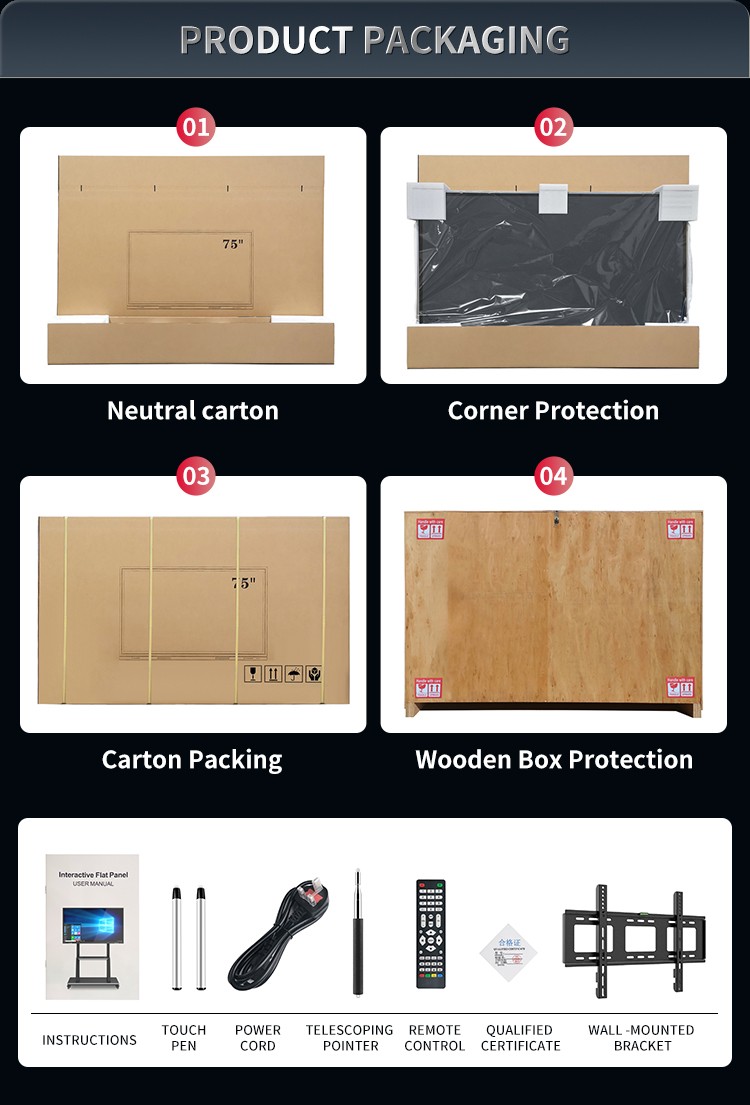

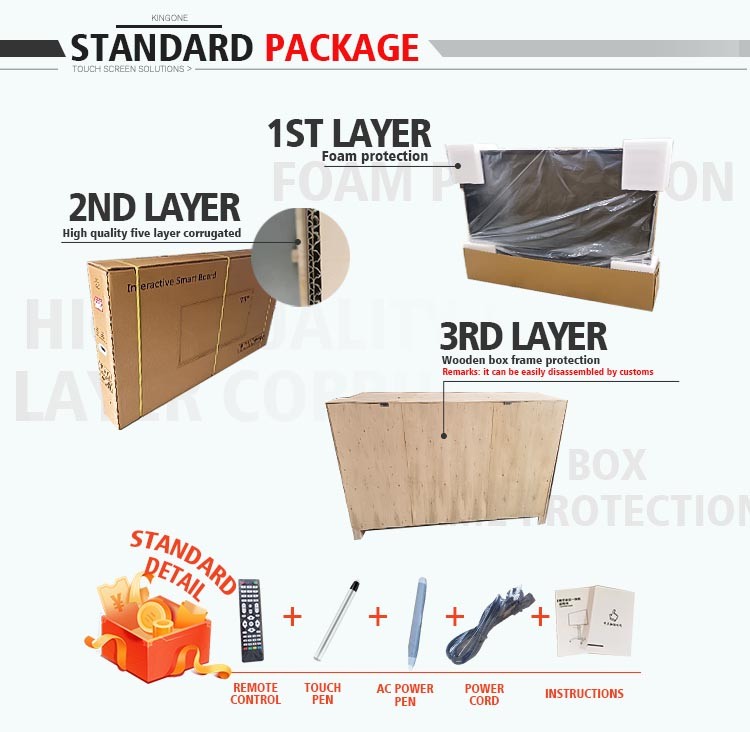

The attachment
The user manual	Manual, warranty card, certificate of conformity
cable	The power cord
Others (optional accessories)	Remote control, base/bracket, WiFi

1)Are you a factory or trading company ? What is the MOQ of Smart Board?

A:Yes, we are factory direct sales and have some items in stock , you can order 1pcs for test.

2) What is the delivery time? Where do you ship of Smart Board?

A:Generally speaking , the goods can be delivered within 5-7 days for small orders, and the production time about 15 days

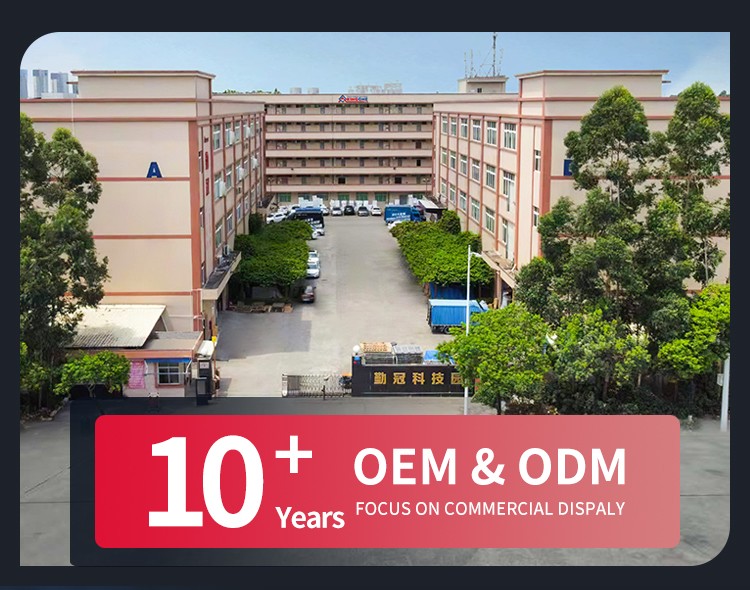

for more than 10pcs. In addition, our factory is located in Wangniudun, Dongguan. If you have forwarder in Shenzhen or

Guangzhou, we can help shipment to your fowarder .

3) Could you provide OEM&ODM service of Smart Board?

A:of course , including software, packaging, product logo, etc., consult customer service for more details.

4) What is the warranty period of Smart Board?

A:Normally it is 1 year, we have a professional after-sales service team, specific details can consult customer service.

5)How do you guarantee the quality of your Smart Board?

A:Our products comply with ISO9001 quality system and CE/FCC/ROHS standards. All our products pass strict QC

inspection in the production process. In particular, export products need to complete 72-hour aging test to ensure no

problems before shipment.

6)How do you arrange transportation for Smart Board?

A:If small sample orders suggest express delivery (7-10 days) or air freight (10-15 days), if bulk production advise

by sea more favorable , please consult customer service for more details !
